RMGT 5 - A3-Plus Size Offset Presses
520GX model

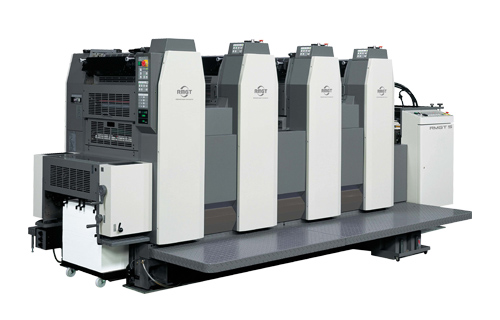

RMGT5 520GX model
520GX-4+CC

The 520GX includes an array of high-end technologies, offering high-speed printing at up to 15,000 S.P.H. and numerous automation and labor-saving devices. The 520GX can easily handle a wide range of printing work, from catalogs and cardboard packages to envelopes and postcards.

  • Satellite-type cylinder arrangement consists of a double-diameter impression cylinder and double-diameter and triple-diameter transfer cylinders
  • SPC semiautomatic plate changer ensures fast, accurate plate changing (standard equipment)
  • Vacuum feeder board for easier setting of the brush and runner wheels and faster changing of the sheet size
  • Prints laterally fed postcards and envelopes
  • Fully automatic convertible perfecting device (520GXP)
  • 5-color and 6-color printing and inline varnish coating for high value-added printing

Specifications

Design and specifications are subject to change without notice.
This data was obtained under RMGT's standard test conditions. Results will vary according to the operating conditions.
ModelGX (straight press)GXP (convertible perfector)
Max. printing speed 15,000 S.P.H.
Max. sheet size 375 x 520 mm
Min. sheet size 105 x 100 mm Straight printing: 105 x 100 mm
Perfecting: 150 x 100 mm
Max. printing area 350 x 505 mm
Paper thickness 0.04 - 0.6 mm Straight printing: 0.04 - 0.6 mm
Perfecting: 0.04 - 0.4 mm
