1,020/1,050 mm Format

RMGT 10 - 1,020/1,050 mm Format Offset Presses
PF (Convertible perfector)

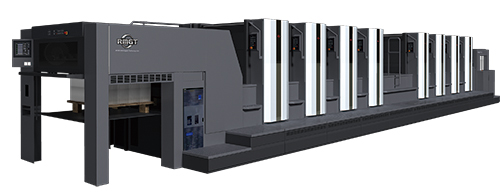

RMGT10 PF (Convertible perfector)
1050PF-8(4/4)

The RMGT 10 PF is a convertible perfector press that performs both straight printing and perfecting. A sheet reversing unit installed between the printing units reverses the sheets to enable one-pass perfecting. Switching between straight printing and perfecting is fully automatic and takes just 3 minutes.

  • Unique reversing mechanism employing three double-diameter cylinders for fast, high-quality perfecting
  • Maintains the same printing speed of 16,000 SPH for both straight printing and perfecting
  • Belt transfer guide in the delivery section ensures the belt moves at the same speed as the sheets, preventing scratching of the printed surface
  • Paralle processing of printing procedure shortens make-ready time approximately 20-40% compapred to previous presses.

Specifications

Design and specifications are subject to change without notice.
This data was obtained under RMGT's standard test conditions. Results will vary according to the operating conditions.
Model1020 model1050 model
Max. printing speed 16,200 S.P.H
Max. sheet size 740 x 1,020 mm 750 x 1,050 mm
Min. sheet size Straight printing: 360 x 540 mm
Perfecting: 440 x 540 mm
Max. printing area Straight printing: 730 x 1,020 mm
Perfecting: 720 x 1,020 mm
Straight printing: 740 x 1,050 mm
Perfecting: 730 x 1,050 mm
Paper thickness 0.04 - 0.6 mm
