RMGT 10 (1,020/1,050 mm format)

RMGT 10 - 1,020/1,050 mm Format Offset Presses
ST (Straight press)

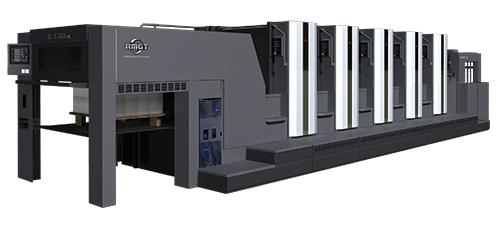

RMGT10 ST(Straight press)
1050ST-5

The RMGT 10 ST (straight press) was developed based on mechanisms offering proven rigidity, an inking device and dampening system that provide exceptional printing quality, and a seven o'clock cylinder arrangement with double-diameter impression and transfer cylinders. This high-performance press boasts the latest state-of-the-art printing technologies.

  • SimulChanger fully automatic simultaneous plate changer can change the plates for all units in just 75 seconds
  • Easy maintenance, including a function to quickly and easily check the roller nip
  • Sheet transfer system's unique air management technology ensures smooth sheet transfer all the way from the feeder to the delivery section
  • Multi-mode dampening system switches the dampening mode according to ink coverage required
  • Newly developed press information display with a large 55-inch screen enables the operator to easily monitor printing quality and operating status in real time from the delivery section (option)
  • Paralle processing of printing procedure shortens make-ready time approximately 20-40% compapred to previous presses.
  • Simul Changer and Simul Changer Parallel allow simultaneous plate changing on all printing units in the fast time (option)

Specifications

Design and specifications are subject to change without notice.
This data was obtained under RMGT's standard test conditions. Results will vary according to the operating conditions.
Model1020 model1050 model
Max. printing speed 16,200 S.P.H.
Max. sheet size 740 x 1,020 mm 750 x 1,050 mm
Min. sheet size 360 x 540 mm
Max. printing area 730 x 1,020 mm 740 x 1,050 mm
Paper thickness 0.04 - 0.8 mm
