RMGT 9 (A1-Plus Size)

RMGT 9 - A1-Plus Size Offset Presses
970 model

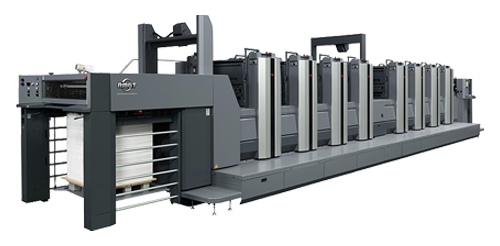

RMGT9 970 model
970PF-8

The upgraded A1 plus-size 970 model builds on the high performance and reliability of the A1-size 920 and 940 models. With a maximum paper size of 650 x 965 mm (maximum printing size: 640 x 930 mm), it can comfortably handle a wide range of applications including multi-page jobs, multi-up printing for packages, and posters. Equipped with a benderless clamping system and a user-friendly touch panel, the RMGT 970 offers increased productivity and shorter lead times.

  • The 970 model handles a maximum sheet size of 650 x 965 mm, and perfecting is possible with sheets up to 650 mm vertically.
  • Compared to B1-size (40-inch) format presses, the 970 model has significantly lower plate costs, lower power consumption and smaller footprint.
  • Convertible perfectors enable perfecting at up to 15,000 S.P.H.*1 for higher productivity.
  • Installing LED-UV curing units at the perfecting device and delivery section makes one pass instant-drying perfecting possible.
  • Newly adopted benderless clamp eliminates the need to bend the plates.
  • Inline coating unit for high-value added printing
  • Incorporating functions of a flag ship RMGT 10 series such as sheet feeding technology and easy nip pressure checking function
  • A 55-inch large screen Press Information Display allows easy monitoring of printing quality and operating status at the delivery (option).
  • Inline printing control of printing sheets including a quality inspection function, a printing density tracking function and an automatic register adjustment function is available with PQS-D (option).
  • Continuous printing of multiple short-run work without sampling printed sheets is possible with Smart Assist Printing function (option).
  • Skeleton transfer cylinder specification (option) corresponds the demands from commercial printing to light package printing.*2

Specifications

Design and specifications are subject to change without notice.
This data was obtained under RMGT's standard test conditions. Results will vary according to the operating conditions.
*1 In the case of 2-, 4-, 5-, 6- and 8-color presses, and 13,000 sheets per hour for a 10-color press.
*2 The skeleton transfer cylinder specification for the 970 model is only available as a straight printing press.
*3 Printing sheet thickness may vary according to paper stock.
ModelST (straight press)PF (convertible perfector)
Max. printing speed 16,000 S.P.H. 15,000 S.P.H.*1
Max. sheet size 650 x 965 mm
Min. sheet size 290 x 410 mm Straight printing: 290 x 410 mm
Perfecting: 370 x 410 mm
Max. printing area 640 x 930 mm Straight printing: 640 x 930 mm
Perfecting: 630 x 930 mm
Paper thickness 0.04 - 0.6 mm
[Skeleton transfer cylinder specification (option):
0.04 - 0.8 mm]*2,3		 0.04 - 0.5 mm
